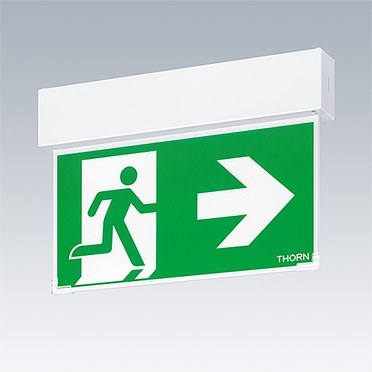

Voyager Blade 2

  • Voyager Blade 2

Sleek and Simple

  • Multiple mounting options: Surface mounting wall and ceiling, recessed ceiling, suspended ceiling, 90° wall
  • Each accessory fits to each luminaire variant due to the same base housing for each recognition range
  • The pictograms "Up, Left, Right, Down" are included in the scope of delivery
  • Selectable autonomy duration of 1/2/3/8h (for manual and self-test) by changing simply DIP switch settings
  • Testing options: The self-contained Voyager Blade 2 is available in manual test, self-test and with DALI test option

Materials and Finish

Housing: white polycarbonate
Cover: transparent polycarbonate

Installation and Mounting

Tool-less 'Click' mounting after fitting the housing base

Specification

To specify state:
Flexible safety sign luminaire for various mounting possibilities for recognition ranges 23m and 30m. Self-contained luminaire with selectable autonomy durations 1/3h. Manual test, self-test and DALI test version capability. IP40. Class II electrical.
As Thorn Voyager Blade 2

  • New Product
New Product
LumExpress Product
eControl Product

▼ Voyager Blade 2 Surface mounted, 23 metre range

Description   TypeWt (kg)SAP Code
VOYAGER BLADE 2 115 MS E1/3 BKLED0.6096637605
VOYAGER BLADE 2 115 MS E1/3 WHLED0.6096637597
VOYAGER BLADE 2 115 MS E1/3BC BKLED0.6596637608
VOYAGER BLADE 2 115 MS E1/3BC WHLED0.6596637600
VOYAGER BLADE 2 115 MS E1/3D BKLED0.6096637607
VOYAGER BLADE 2 115 MS E1/3D WHLED0.6096637599
VOYAGER BLADE 2 115 MS E1/3T BKLED0.6096637606
VOYAGER BLADE 2 115 MS E1/3T WHLED0.6096637598
VOYAGER BLADE 2 115 MS ECD WH0.8096637564
VOYAGER BLADE 2 115 P MS ECP WH0.8096637565
VOYAGER BLADE 2 115 P MS ELP WH0.8096637566

▼ Voyager Blade 2 Surface mounted, 30 metre range

Description   TypeWt (kg)SAP Code
VOYAGER BLADE 2 150 MS E1/3 BKLED0.8096637609
VOYAGER BLADE 2 150 MS E1/3 WHLED0.8096637601
VOYAGER BLADE 2 150 MS E1/3BC BKLED0.8596637612
VOYAGER BLADE 2 150 MS E1/3BC WHLED0.8596637604
VOYAGER BLADE 2 150 MS E1/3D BKLED0.8096637611
VOYAGER BLADE 2 150 MS E1/3D WHLED0.8096637603
VOYAGER BLADE 2 150 MS E1/3T BKLED0.8096637610
VOYAGER BLADE 2 150 MS E1/3T WHLED0.8096637602
VOYAGER BLADE 2 150 MS ECD WH0.9096637568
VOYAGER BLADE 2 150 P MS ECP WH0.9096637569
VOYAGER BLADE 2 150 P MS ELP WH0.9096637570

▼ Voyager BLADE 2 Contus 23 metre range

Description   TypeWt (kg)SAP Code
VOYAGER BLADE 2 115 CON E1/3 BKLED1.1496637621
VOYAGER BLADE 2 115 CON E1/3 WHLED1.1496637613
VOYAGER BLADE 2 115 CON E1/3BC BKLED1.1996637624
VOYAGER BLADE 2 115 CON E1/3BC WHLED1.1996637616
VOYAGER BLADE 2 115 CON E1/3D BKLED1.1496637623
VOYAGER BLADE 2 115 CON E1/3D WHLED1.1496637615
VOYAGER BLADE 2 115 CON E1/3T BKLED1.1496637622
VOYAGER BLADE 2 115 CON E1/3T WHLED1.1496637614

▼ Voyager BLADE 2 Contus 30 metre range

Description   TypeWt (kg)SAP Code
VOYAGER BLADE 2 150 CON E1/3 BKLED1.2796637625
VOYAGER BLADE 2 150 CON E1/3 WHLED1.2796637617
VOYAGER BLADE 2 150 CON E1/3BC BKLED1.3296637628
VOYAGER BLADE 2 150 CON E1/3BC WHLED1.3296637620
VOYAGER BLADE 2 150 CON E1/3D BKLED1.2796637627
VOYAGER BLADE 2 150 CON E1/3D WHLED1.2796637619
VOYAGER BLADE 2 150 CON E1/3T BKLED1.2796637626
VOYAGER BLADE 2 150 CON E1/3T WHLED1.2796637618

▼ Voyager Blade 2 Accessories

Description   Wt (kg)SAP Code
VOYAGER BLADE 2 FSR WH0.3096633310
VOYAGER BLADE 2 MS90° WH0.2596633309
VOYAGER BLADE 2 MSC-Cord200.2096633311

▼ Voyager Blade 2 Spares

Description   Wt (kg)SAP Code
EMpowerLED E3D 1/350mA0.0759012020
VOYAGER BLADE 2 115 LEGENDSET SM-S0.1359011294
VOYAGER BLADE 2 150 LEGENDSET SM-S0.1759011295
VOYAGER BLADE 2 E3D ACCU0.1659011291
VOYAGER BLADE2 ACCU LiFePo4 1/3h0.0559013699
VOYAGER BLADE2 E1/3 CONVERTER0.0659013702
VOYAGER BLADE2 E1/3D CONVERTER0.0659013704
VOYAGER BLADE2 E1/3T CONVERTER0.0659013703
