Voyager One
Projects
Emergency lighting
Thorn and Zumtobel Lighting put Cleveland Police firmly in controlCombining the best of 2 worlds: safety luminaire & safety sign luminaire in one
- As well as being a high-performing safety luminaire, Voyager One can also fulfil the requirements of a safety sign luminaire. It’s two products in one

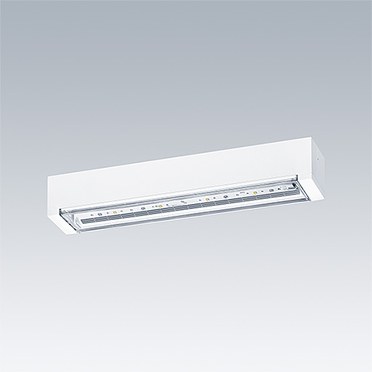

- Voyager One is an ultra-slim emergency luminaire that also achieves high levels of protection. The luminaire balances a simple blade appearance with IP65 protection against dust and moisture
- Thorn stands for quality and practical products. With this in mind, we make sure installation of luminaires is as easy as possible. The screw-free housing is easy to assemble, and accessories are easy to attach
Materials and Finish
Housing: white polycarbonate
Cover: transparent polycarbonate
Installation and Mounting
Tool-less 'Click' mounting after fitting the housing base. Click adapter for wall surface mounting within scope of delivery.
Specification
To specify state:
Industrial safety luminaire, suitable for surface wall and ceiling mounting, additional click-optics optimised for escape routes and open areas from higher mounting heights available. IP65 vent for outdoor usage (only central supply), emergency lighting in maintained or non-maintained mode, click in legends with recognition distance: EN - 15m and EN - 30m available. Self contained luminaire with 3 hours emergency duration from Nickel Metal Hydride batteries with manual test, autotest and controltest, display of luminaire status via status LED (selfcontained only), central supply circuit monitoring or central supply individual monitoring via SET009 versions capability. IP65. Class II electrical.
As Thorn Voyager One
▼ Voyager One Surface mounted
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER ONE MS ANT E3 WH IP65 | LED | 0.50 | 96631596 | ||||||
| VOYAGER ONE MS ANT E3T WH IP65 | LED | 0.50 | 96631597 | ||||||
| VOYAGER ONE MS ANT ECC WH IP65 | LED | 0.40 | 96631599 | ||||||
| VOYAGER ONE MS ANT ECS WH IP65 | LED | 0.40 | 96631600 | ||||||
| VOYAGER ONE MS ANT HP ECC WH IP65 | LED | 0.60 | 96631601 | ||||||
| VOYAGER ONE MS ANT HP ECS WH IP65 | LED | 0.60 | 96631602 | ||||||
| VOYAGER ONE P MS ANT E3D WH IP65 | LED | 0.60 | 96631598 | ||||||
| VOYAGER ONE P MS ANT ECD WH IP65 | LED | 0.40 | 96632900 | ||||||
| VOYAGER ONE P MS ANT ECP WH IP65 | LED | 0.40 | 96632905 |
▼ Voyager One Accessories
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER ONE 115 MS SM-S | 0.70 | 96631604 | |||||||
| VOYAGER ONE 150 MS SM-S | 0.90 | 96631603 | |||||||
| VOYAGER ONE ANT HC LENSES | 0.01 | 96631631 | |||||||
| VOYAGER ONE ESC LENSES | 0.01 | 96631607 | |||||||
| VOYAGER ONE FSR WH | 0.10 | 96631605 | |||||||
| VOYAGER ONE IP65 MEMBRAN | 0.00 | 96631606 | |||||||
| VOYAGER STYLE / ONE MSC-CORD25 | 0.20 | 96631617 | |||||||
| VOYAGER STYLE / ONE MSC-R05 | 0.13 | 96631618 | |||||||
| VOYAGER STYLE 150 / ONE BP GRID | 1.64 | 96631620 | |||||||
| VOYAGER STYLE 150 / ONE MS90° | 0.33 | 96631621 |
▼ Voyager One Spares
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Voyager One ACCU 3h | 0.14 | 59010596 | |||||||
| Voyager One Ballast E3D | 0.07 | 59010727 | |||||||
| Voyager One Ballast ECC HP | 0.70 | 59010601 | |||||||
| Voyager One Ballast ECD | 0.06 | 59011001 | |||||||
| Voyager One Ballast ECP | 0.06 | 59011004 |
