Voyager Sigma
Projects
Exit signage

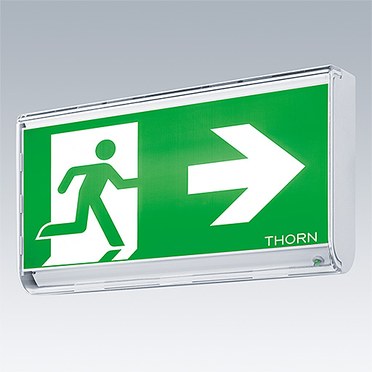

Netherburn Primary School, LanarkshireHigh performance exit sign with LED and self or central automatic test options
- A hinged steel gear tray makes installation and maintenance easy.
- Available with a choice of ISO or EU exit legend panels
- Printed legend panel clips behind diffuser for easy maintenance
- LED variants utilise "green" NiMh batteries
Materials and Finish
Body: polycarbonate with alternative finishes in either RAL9010 white or RAL9006 metallic silver
Diffuser and legend panel: polycarbonate
Installation and Mounting
Wall mounted with 20mm conduit or rear back box entry.
Specification
To specify state:
Sign for viewing up to 30m distance, maintained operation, available as manual (E3) or self/addressable (E3TX) test capability. 3 hours emergency duration with either 8W T16 lamp or LED strip. With choice of European or International format Exit legends.
As Thorn Voyager Sigma.
New Product
LumExpress Product
eControl Product
▼ Voyager Sigma
| Description | Catalogue No. | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| VOYAGER SIGMA LED E3M SIL | VYSLEDMS | LED | 1.40 | 96233814 | ||||||
| VOYAGER SIGMA LED E3M WHI | VYSLEDMW | LED | 1.40 | 96233813 | ||||||
| VOYAGER SIGMA LED E3TX SIL | LED | 1.40 | 96233816 | |||||||
| VOYAGER SIGMA LED E3TX WHI | LED | 1.40 | 96233815 |
▼ Voyager Sigma Legends
| Description | Catalogue No. | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| VOYAGER SIGMA LEG ISO DOWN | VYSISD | 0.10 | 96236786 | |||||||
| VOYAGER SIGMA LEG ISO LEFT | VYSISL | 0.10 | 96236787 | |||||||
| VOYAGER SIGMA LEG ISO RIGHT | VYSISR | 0.10 | 96236788 | |||||||
| VOYAGER SIGMA LEG ISO UP | VYSISU | 0.10 | 96236785 |
▼ Voyager Sigma Spares
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| SPARE 3 Cell Batt Nickel Metal Hydride | 2.45 | 59006131 |
