Voyager Sigma / VOYAGER SIGMA LED E3M SIL

96233814 / VYSLEDMS

Data Sheet

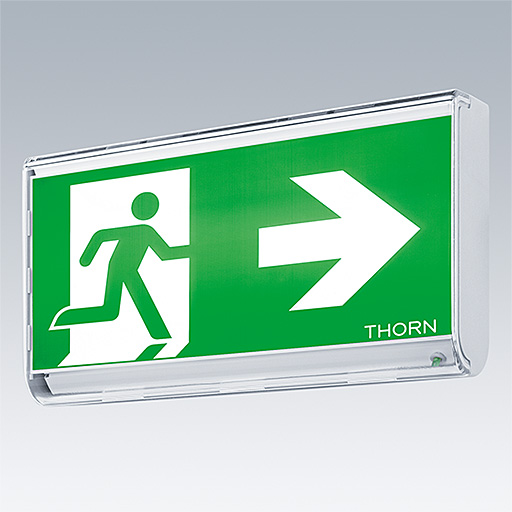

A self-contained, maintained emergency exit sign for 1 x 1W Light Source: LED strip giving 3 hours manual test emergency operation. IP40, Class I electrical. Body in polycarbonate, finished metallic silver. Diffuser in polycarbonate. Can be wall mounted with 20mm conduit or rear back box entry. Legend panels required to be ordered separately in either ISO or EU formats. Complete with LED strip

Dimensions: 327 x 65 x 197 mm
Luminaire input power: 4 W
Weight: 1.4 kg

  • LED
  • CE
  • 650°
  • IK03
  • IP40
  • SC1
  • Ta = +5 to +35
