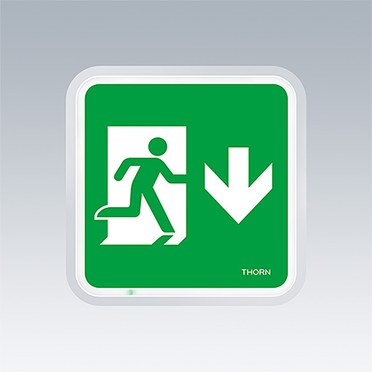

Voyager Square
Projects
Exit signageStrong, smooth and highly protected
- IP 65 - protection against dust & water, making it an ideal fitting for indoor and outdoor applications
- IK 10 impact strength: resists impacts of up to 20 joules ensuring a high level of protection against mechanical shocks
- Clean, smooth aesthetic design reduces dust and dirt accumulation and ensures easy cleaning and lowest maintenance requirements
- Easy installation saving time and money
- Self-contained emergency luminaires rely on long-lasting batteries. The high-tech lithium iron phosphate battery used is robust and comes with a three-year guarantee, giving users peace of mind.
- With a recognition range of 44 metres, and a luminance level > 500 cd/m² in the white area and > 200 cd/m² on average (acc. to DIN 4844), the luminaire fulfills the highest illumination standards and is clearly visible also in demanding environments.
Materials and Finish
Body and bezel: polycarbonate, white
Diffuser: polycarbonate, white, diffuse
Screws: steel, zinc plated
Silicone and halogen free
Installation and Mounting
Wall mounted luminaire. Loop-in, loop-out possible for cables up to 2.5mm². BESA compatible.
Specification
To specify state:
Wall-mounted safety sign luminaire with 44 metres recognition range, IP65 protection and IK10 impact strength. Available as self-contained versions (E1D, E3D) with durable Lithium iron phosphate batteries (3 years guarantee on the batteries), and as central battery versions (ECD, ECP, ECC).
Cover with glued-on pictogram included, optionally with arrow up, down, left or right. Best visibility thanks to high luminance levels (>500cd/m² in white area in mains mode acc. to DIN 4844).
Easy cleanability thanks to smooth design & round edges (Food certificate available for areas with fully-packaged food).
As Thorn Voyager Square
▼ Voyager Square
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| VOY SQUARE 220 P MSW E3D WH SP1-E001-L | LED | 1.15 | 96635069 | ||||||
| VOY SQUARE 220 P MSW E3D WH SP1-E002-D | LED | 1.15 | 96635068 | ||||||
| VOY SQUARE 220 P MSW E3D WH SP1-E002-R | LED | 1.15 | 96635066 | ||||||
| VOY SQUARE 220 P MSW E3D WH SP1-E002-UP | LED | 1.15 | 96635038 | ||||||
| VOY SQUARE 220 P MSW ECC WH SP1-E001-L | LED | 0.85 | 96635078 | ||||||
| VOY SQUARE 220 P MSW ECC WH SP1-E002-D | LED | 0.85 | 96635076 | ||||||
| VOY SQUARE 220 P MSW ECC WH SP1-E002-R | LED | 0.85 | 96635077 | ||||||
| VOY SQUARE 220 P MSW ECC WH SP1-E002-UP | LED | 0.85 | 96635053 | ||||||
| VOY SQUARE 220 P MSW ECD WH SP1-E001-L | LED | 0.85 | 96635072 | ||||||
| VOY SQUARE 220 P MSW ECD WH SP1-E002-D | LED | 0.85 | 96635070 | ||||||
| VOY SQUARE 220 P MSW ECD WH SP1-E002-R | LED | 0.85 | 96635071 | ||||||
| VOY SQUARE 220 P MSW ECD WH SP1-E002-UP | LED | 0.85 | 96635039 | ||||||
| VOY SQUARE 220 P MSW ECP WH SP1-E001-L | LED | 0.85 | 96635075 | ||||||
| VOY SQUARE 220 P MSW ECP WH SP1-E002-D | LED | 0.85 | 96635073 | ||||||
| VOY SQUARE 220 P MSW ECP WH SP1-E002-R | LED | 0.85 | 96635074 | ||||||
| VOY SQUARE 220 P MSW ECP WH SP1-E002-UP | LED | 0.85 | 96635040 |
▼ Voyager Square Spares
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| ACCU LiIon 3,2V 3,0Ah 18650 2 SBS CON3 | 0.18 | 59010611 | |||||||
| EMPOWER PROSET E3D 22x10/120mA | 0.07 | 59011582 | |||||||
| EMPOWER PROSET ECC 22x10/120mA | 0.07 | 59011585 | |||||||
| EMPOWER PROSET ECD 22x10/120mA | 0.07 | 59011583 | |||||||
| EMPOWER PROSET ECP 22x10/120mA | 0.07 | 59011584 |
