Voyager Star
Projects
Greenock Health and Care Centre
Emergency lightingSafety superstar with high performance, flexibility and sustainability.

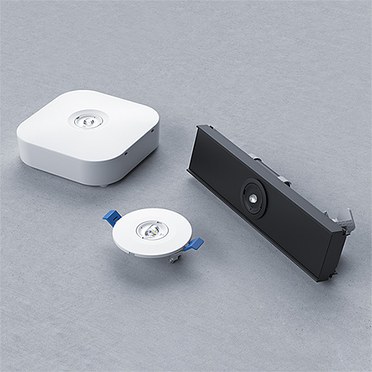

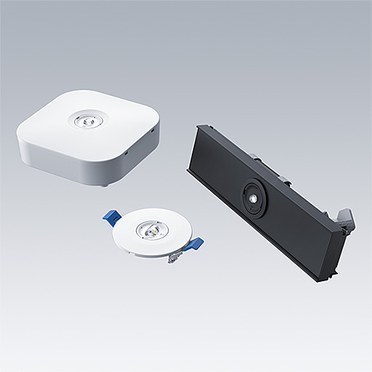

- Voyager Star is designed for an expansive range of indoor applications including office, education, retail and more

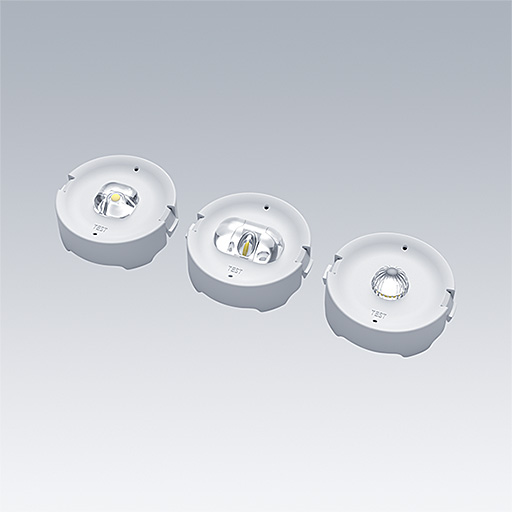

- Thanks to its three specialised optics; Anti-panic, Escape route and Spot (narrow beam), delivered with each luminaire, it is possible to decide on-site which optic is the perfect one for the specific luminaire location
- Due to the high-performance optics for reaching very wide spacing values, luminaires can be saved when compared to other solutions and the overall project costs are reduced
- Our basicDIM wireless variants are completing the self-contained portfolio, designed to make your refurbishment projects running as smooth as possible
- The huge variants of different central battery systems, as well as with DALI or powerline communication, makes it possible to choose Voyager Star for projects big and small
Materials and Finish
Surface-mounted and Recessed versions:
Housing: white or black polycarbonate (PC)
Lenses: transparent PMMA
Contus version:
Housing: Roll-formed sheet steel with white or black polyester coating
Lenses: transparent PMMA
Installation and Mounting
Depending on the location, the installer can select from a choice of three supplied optics (ESC, ANT, Spot) to best suit the lighting requirements of the space. A tool-free click-in system provides quick and easy installation.

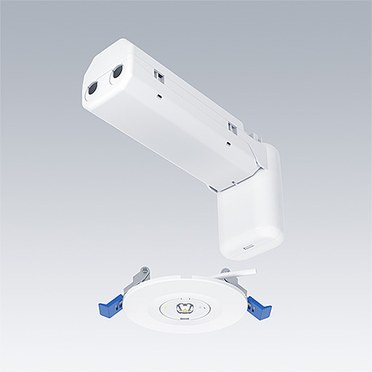

Voyager Star Recessed can be installed directly into a wide range of ceiling types, with a thickness between 1 mm and 25 mm. The luminaire has a discreet cut-out diameter of only 68 mm. Loop-in, Loop-out is possible for cables with wires up to 2.5 mm².
The Surface Mounted Voyager Star is delivered with a double-back and double-sided cable entry. Loop-in, Loop-out is possible for cables with wires up to 2.5 mm².

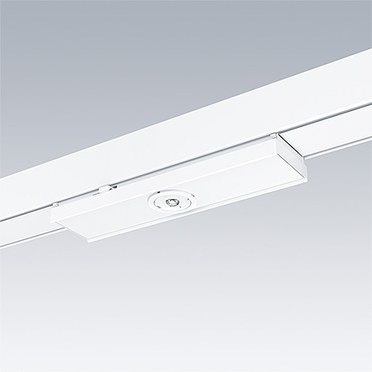

Tool-free installation of the Voyager Star Contus models is by a simple ‘click-in’ system.
- New Product
▼ Voyager Star Recessed white
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER STAR MRCR E1/3 S WH | LED | 0.35 | 96638070 | ||||||
| VOYAGER STAR MRCR E1/3T S WH | LED | 0.35 | 96638071 | ||||||
| VOYAGER STAR MRCR E3/8 S WH | LED | 0.38 | 96638078 | ||||||
| VOYAGER STAR MRCR E3/8T S WH | LED | 0.38 | 96638079 | ||||||
| VOYAGER STAR MRCR ECC WH | LED | 0.29 | 96638085 | ||||||
| VOYAGER STAR MRCR ECP P WH | LED | 0.29 | 96638083 | ||||||
| VOYAGER STAR MRCR ELP P WH | LED | 0.29 | 96638084 |

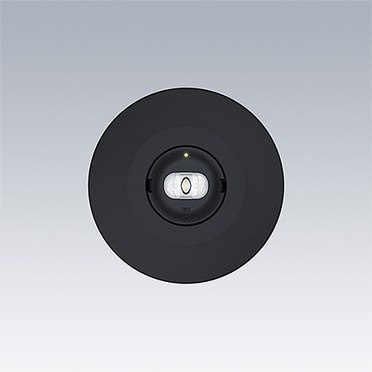

▼ Voyager Star Recessed black
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER STAR MRCR E1/3 S BK | LED | 0.35 | 96638074 | ||||||
| VOYAGER STAR MRCR E1/3T S BK | LED | 0.35 | 96638075 | ||||||
| VOYAGER STAR MRCR E3/8 S BK | LED | 0.38 | 96638086 | ||||||
| VOYAGER STAR MRCR E3/8T S BK | LED | 0.38 | 96638087 | ||||||
| VOYAGER STAR MRCR ECC BK | LED | 0.29 | 96638093 | ||||||
| VOYAGER STAR MRCR ECP P BK | LED | 0.29 | 96638091 | ||||||
| VOYAGER STAR MRCR ELP P BK | LED | 0.29 | 96638092 |
▼ Voyager Star Surface white
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER STAR MSC E1/3 S WH | LED | 0.46 | 96638094 | ||||||
| VOYAGER STAR MSC E1/3T S WH | LED | 0.46 | 96638095 | ||||||
| VOYAGER STAR MSC E3/8 S WH | LED | 0.51 | 96638102 | ||||||
| VOYAGER STAR MSC E3/8T S WH | LED | 0.51 | 96638103 | ||||||
| VOYAGER STAR MSC ECC WH | LED | 0.41 | 96638109 | ||||||
| VOYAGER STAR MSC ECP P WH | LED | 0.41 | 96638107 | ||||||
| VOYAGER STAR MSC ELP P WH | LED | 0.41 | 96638108 |

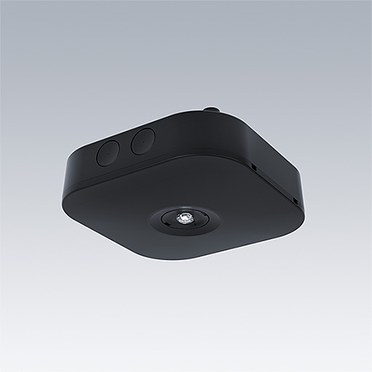

▼ Voyager Star Surface black
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER STAR MSC E1/3 S BK | LED | 0.46 | 96638098 | ||||||
| VOYAGER STAR MSC E1/3T S BK | LED | 0.46 | 96638099 | ||||||
| VOYAGER STAR MSC E3/8 S BK | LED | 0.51 | 96638110 | ||||||
| VOYAGER STAR MSC E3/8T S BK | LED | 0.51 | 96638111 | ||||||
| VOYAGER STAR MSC ECC BK | LED | 0.41 | 96638117 | ||||||
| VOYAGER STAR MSC ECP P BK | LED | 0.41 | 96638115 | ||||||
| VOYAGER STAR MSC ELP P BK | LED | 0.41 | 96638116 |
▼ Voyager Star previous generation
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER STAR MRCR ANT E3D WH | LED | 0.55 | 96637542 | ||||||
| VOYAGER STAR MRCR ESC E3D WH | LED | 0.55 | 96637540 | ||||||
| VOYAGER STAR MSC ESC E3D WH | LED | 0.70 | 96637546 | ||||||
| VOYAGER STAR MSC SPOT E3D WH | LED | 0.74 | 96637550 | ||||||
| VOYAGER STAR P MRCR ANT ECD WH | LED | 0.45 | 96633208 | ||||||
| VOYAGER STAR P MRCR ESC ECD WH | LED | 0.45 | 96633227 | ||||||
| VOYAGER STAR P MRCR SPOT ECD WH | LED | 0.45 | 96633228 | ||||||
| VOYAGER STAR P MSC ANT ECD WH | LED | 0.65 | 96633207 | ||||||
| VOYAGER STAR P MSC ESC ECD WH | LED | 0.65 | 96633225 | ||||||
| VOYAGER STAR P MSC SPOT ECD WH | LED | 0.65 | 96633226 |
▼ Voyager Star Spares
| Description | Catalogue No. | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| ACCU NiMH 2,4V 2,2Ah Cs 2 SBS | 1.00 | 59004661 | ||||||||
| ACCU NiMH 2,4V 4,0Ah LA 2 SBS CON3 200 | 0.16 | 59009425 | ||||||||
| ACCU NiMH 2,4V 4,0Ah LA 2 SBS CON3 75 | 0.16 | 59009424 | ||||||||
| ACCU NIMH 2.4V 4Ah 7/5 2 SBS CON3 165mm | ACCU NIMH 2,4V 4,0 | 0.20 | 59004666 | |||||||
| ACCU NIMH 3.6V 2.2Ah Cs 3 SBS 135/160mm | 0.20 | 59010372 | ||||||||
| EMpower PROset E3D 1/340mA | 0.07 | 59010610 | ||||||||
| EMpower PROset E3D 1/420mA | 65.00 | 59010458 | ||||||||
| EMpower PROset ECD | 0.07 | 59009272 | ||||||||
| EMpower PROset ECD 1/550mA | 0.07 | 59011015 | ||||||||
| EMpower PROset ECP | 0.07 | 59009273 | ||||||||
| EMpower PROset ECP 1/550mA | 0.07 | 59011016 | ||||||||
| EMpower PROset ExD | 0.07 | 59009271 | ||||||||
| EMpower VOYAGER Star ECC 1/550mA | 0.07 | 59010854 | ||||||||
| EMpower VOYAGER Star ECS 1/550mA | 0.07 | 59010853 | ||||||||
| EMpowerLED E3D 1/350mA | 0.07 | 59012020 | ||||||||
| VOYAGER STAR ANTIPANIC LENSES | 0.04 | 59007293 | ||||||||
| VOYAGER STAR ESCAPE LENSES | 0.04 | 59007292 | ||||||||
| VOYAGER STAR SPOT LENSES | 0.06 | 59008194 |
