  • Voyager Star — VOYAGER STAR KIT ANT ECC

Voyager Star / VOYAGER STAR KIT ANT ECC

96629612

▼ Data Sheet

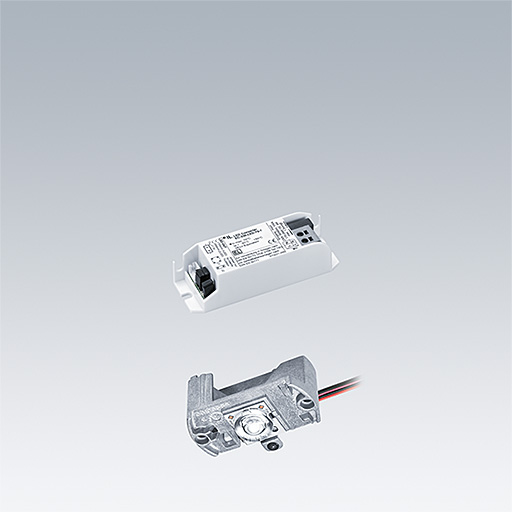

High performance, LED emergency lighting kit for incorporation into a suitable housing (not supplied), with open area optic.. Lens: polycarbonate. Optimum thermal management via heat sink. Complete with LEDs..

Luminaire input power: 3 W
Weight: 0.5 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:200 lm
  • Total emergency luminous flux:200 lm
  • Luminaire efficacy*:67 lm/W
  • Ballast:1 x 00156480 DRV IL EC 3.5W 700mA 7.5V F
  • Rated median useful life*: 50000 h at 25 °C
  • Luminaire input power*:3 W Power factor = 0.46
  • Maintenance category CIE 97:D - Enclosed IP2X
  • LED
  • CE

▼ Photometry

Photometric configuration
