  • Voyager Star — VOYAGER STAR MSC SPOT ECC SR

Voyager Star / VOYAGER STAR MSC SPOT ECC SR

96631655

▼ Data Sheet

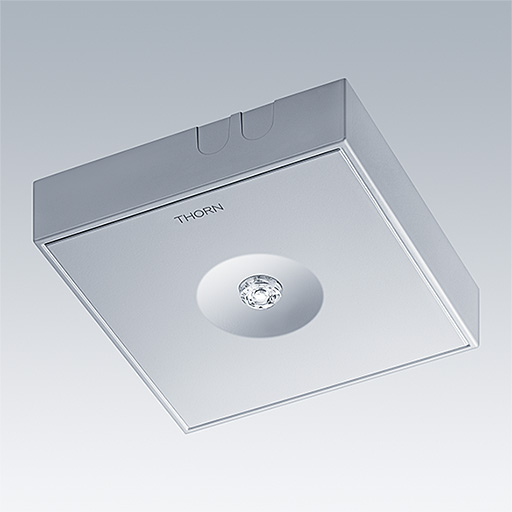

High performance, surface mounted LED emergency lighting luminaire, with spot lighting optic.. Housing: aluminium die casting alloy, powder coated silver grey (close to RAL 9006). Gear tray: galvanised steel sheet. Lens: polycarbonate. IP40,. Luminaire can be installed quickly and maintained without tools. Electrical connection (230VAC) via maximum 2.5mm² cable, loop in - loop out possible. Optimum thermal management via heat sink. Complete with LEDs..

Luminaire input power: 3 W
Dimensions: 146 x 146 x 34 mm
Weight: 1 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:190 lm
  • Total emergency luminous flux:190 lm
  • Luminaire efficacy*:63 lm/W
  • Ballast:1 x 00156480 DRV IL EC 3.5W 700mA 7.5V F
  • Rated median useful life*: 50000 h at 25 °C
  • Luminaire input power*:3 W Power factor = 0.46
  • Maintenance category CIE 97:D - Enclosed IP2X
  • LED
  • CE
  • Hfree
  • IP40
  • SC1

▼ Photometry

Photometric configuration
