Glacier II / GLAC2 L LED3 3000-830 BC E3 BK AL BK

96632190

Data Sheet

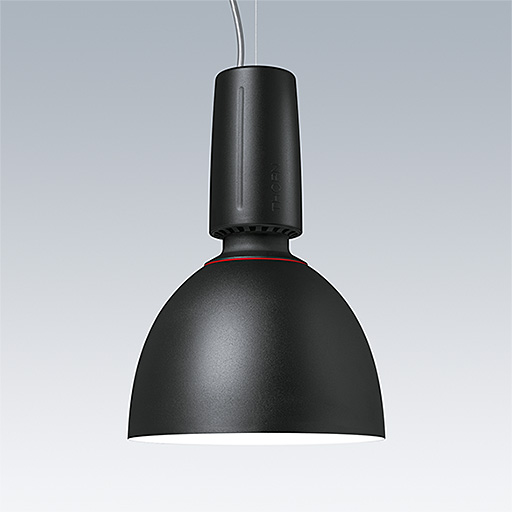

A modern and efficient LED pendant luminaire. Electronic, Wireless controlled via App with Bluetooth® 4.x - basicDIM Wireless with 3 hour, manual test, emergency lighting circuit. Housing: die-cast aluminium with satin black finish. Reflector: black aluminium with easy bayonet mount connection to housing. Class I electrical, IP20. Suspended via adjustable quick-lock 2.5m single wire suspension (supplied). Pre-wired with braided, flame retardent silicone cable, 6 x 0.75mm². Complete with 3000K LED

Radio definition: basicDIM Wireless - Bluetooth® 4.x, Radio frequency: 2.4...2.483 GHz, Radio power: +4 dBm.

Dimensions: Ø340/140 x 485 mm
Luminaire input power: 27 W
Weight: 5.1 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2800 lm
  • Total emergency luminous flux:105 lm
  • Luminaire efficacy*:104 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Ballast:1x HFI* Tridonic LCA
  • Luminaire input power*:27 W Power factor = 0.96
  • Standby Power*:0.2 W
  • Charging power:4 W
  • Dimming:BC dimmable to 1%
  • Radio definition: basicDIM Wireless - Bluetooth® 4.x
  • Radio frequency: 2.4...2.483 GHz
  • Radio power: +4 dBm
  • Maintenance category CIE 97:C - Closed Top Reflector
  • LED
  • CE
  • EN 55015
  • IP20
  • SC1
  • Ta=25
