  • Novaline Style — NOVS L 5000-840 DI HFI WH

Novaline Style / NOVS L 5000-840 DI HFI WH

96635318

▼ Data Sheet

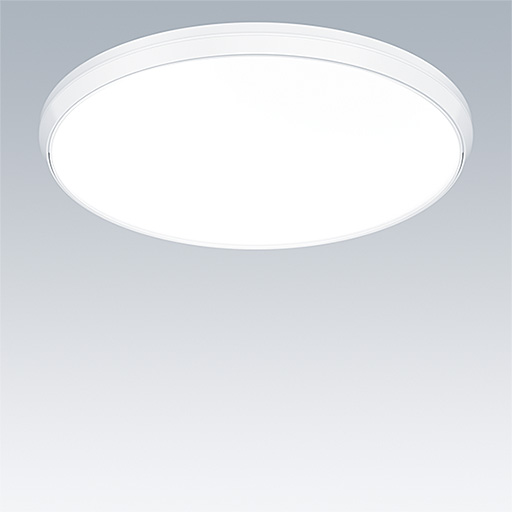

Decorative circular luminaire with large body. Low indirect component for wall and ceiling illumination. Electronic, DALI dimmable. Aesthetic trim of the luminaire made of polycarbonate in white. Diffuser: opal polycarbonate. Class II electrical (this product is not earthed), IP54. Complete with 4000K LED.

Dimensions: Ø497 x 69 mm
Luminaire input power: 35.2 W
Luminaire luminous flux: 5000 lm
Luminaire efficacy: 142 lm/W
Weight: 2.87 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:5000 lm
  • Luminaire efficacy*:142 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000666 LCA 45W 500-1400mA one4all C PRE
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Luminaire input power*:35.2 W Power factor = 0.97
  • Dimming:DaliDim dimmable to 1%
  • Maintenance category CIE 97:E - Dust-proof IP5X
  • Total harmonic distortion (THD):5.00 %
  • LED
  • CE
  • D
  • ENEC11
  • GLedReP
  • 850°
  • Halogenfree
  • IK08
  • IP54
  • LLedReP
  • RG1
  • RoHs
  • SC2
  • Ta= -15 to +25
  • UKCA

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
