Novaline Style S, dimmable
NOVS S 1900-840 DI HFI BK
Article number: 96635534
EAN number: 9010299765512
Technical Data
Electrical Properties
EEC
C
Luminaire input power
13.2 W
Power factor
0.96
Rated voltage
220 - 240 V
Total harmonic distortion (THD)
10 percent
Ballast
Ballast 1: 1 x 28000664 DRV TR LCA 17W 700mA 50V D #O4A C PRE
Safety Class
SC2
Dimming
Dimming DALI
Emergency included
false
Light Distribution
Light Source
LED
Luminaire luminous flux
1900 lm
Luminaire efficacy
144 lm/W
Correlated colour temperature
4000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
80
Light Distribution
STD - standard
Physical Characteristics
Dimensions
Ø[320]x[69] mm
Mounting type
Surface mounted
Length
320 mm
Width
320 mm
Height
69 mm
Weight
1.6 kg
Impact strength
IK08
Degree of protection
IP54
Maintenance and Protection
Rated useful life (B10)
L80 50000 h Rated median useful life 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
Norms and Standards
Certificates
Downloads
Design Data
DatasheetCombination DatasheetFamily datasheetCircuit breaker dataPhotometric LDTPhotometric IESTransfer to DIALuxTransfer to ReluxTransfer to ecoCALC, VIVALDI, DALEC or HILITE3D BIM Revit file540.67 kB
NOVS S 1900-840 DI HFI BK

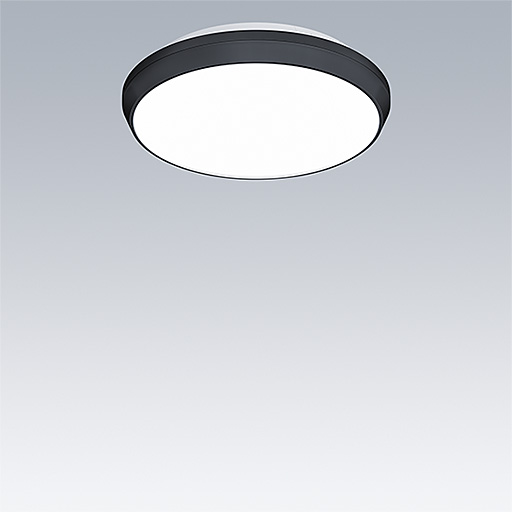

Decorative circular luminaire with small body. Low indirect component for wall and ceiling illumination. Electronic, DALI dimmable. Aesthetic trim of the luminaire made of polycarbonate in black. Diffuser: opal polycarbonate. Class II electrical, IP54. Complete with 4000K LED.
Dimensions: Ø320 x 69 mm
Luminaire luminous flux: 1900 lm
Luminaire efficacy: 144 lm/W
Weight: 1.68 kg
