Punch, suspended, dimmable
PUNCH 3 ASYM MSP 2200-940 L12 HFIX
Article number: 96635741
EAN number: 9010299887085
Technical Data
Electrical Properties
EEC
D
Luminaire input power
16 W
Power factor
0.95
Standby Power
0.4 W
Rated voltage
220 - 240 V
Safety Class
SC1
Dimming
Dimming DALI
Emergency included
false
Light Distribution
Light Source
LED
Luminaire luminous flux
2050 lm
Luminaire efficacy
128 lm/W
Correlated colour temperature
3000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
80
Light Distribution
STD - standard
Beam angle
asymmetrical
Physical Characteristics
Dimensions
1180x116x44 mm
Mounting type
Suspended
Length
1180 mm
Width
116 mm
Height
44 mm
Weight
2.5 kg
Colour
White
Impact strength
IK03
Degree of protection
IP20
Reflector Color
powder coated
Maintenance and Protection
Rated useful life (B10)
L80 70000 h Rated median useful life 25 °C
Maintenance category CIE 97
D - Enclosed IP2X
Norms and Standards
Certificates
Downloads
Design Data
DatasheetCombination DatasheetFamily datasheetPhotometric LDTPhotometric IESTransfer to DIALuxTransfer to ReluxTransfer to ecoCALC, VIVALDI, DALEC or HILITE3D BIM Revit file675.84 kB
PUNCH 3 ASYM MSP 2200-940 L12 HFIX

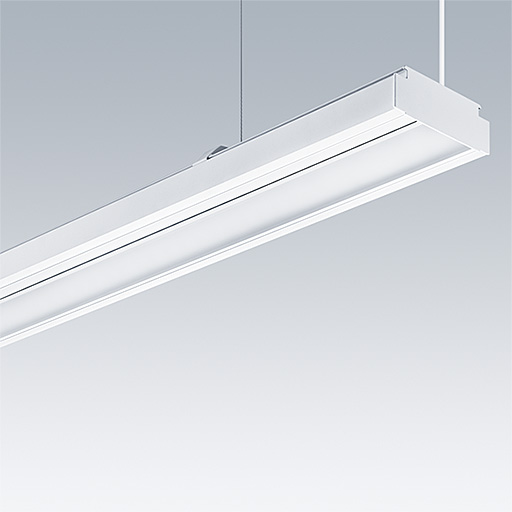

A slim, suspended luminaire with asymmetrical distribution. DALI dimmable LED driver. Body: sheet steel, powder coated white (close to RAL9016). Endcaps: sheet steel powder coated white (close to RAL9016). Louvre: glossy aluminium, double parabolic. Class I electrical, IP20, Impact strength: IK03. Electrical connection via pre-installed power cord (2.5m). Complete with 4000K LED. Suspension kit to be ordered separately.
Y-Suspension connector included - Suspension cord with ceiling rose to be ordered separately (22171581).
Dimensions: 1180 x 116 x 44 mm
Luminaire luminous flux: 2050 lm
Luminaire efficacy: 128 lm/W
Weight: 3.5 kg
