Cetus3 / CETUS3 L 3000-840 HFIX RSB

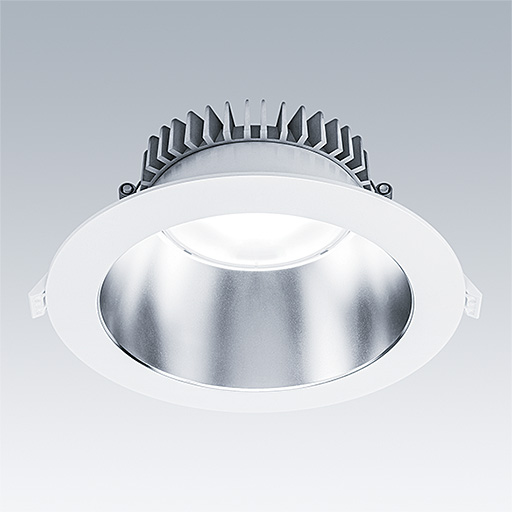

A low height, recessed LED downlight. Suitable for ceiling cut-outs Ø190-230 mm for easy refurbishments or fast initial installations. Remote, pluggable, DALI dimmable LED driver with DC functionality, adjustable 15-100%, NFC configurable, SwitchDIM compatible. Loop in - loop out possible. Body: die-cast aluminium for thermal management. Diffuser: polycarbonate, smooth reflector in satinbrite finish with wide beam. Reflector and trim: high quality, highly reflective polycarbonate. Class II electrical (this product is not earthed), IP44_IP20. Spring clips suitable for ceiling thicknesses from 1 to 35 mm. Complete with 4000K LED



Dimensions: Ø248 x 100 mm
Luminaire input power: 26.9 W
Luminaire luminous flux: 3388 lm
Luminaire efficacy: 126 lm/W
Weight: 0.82 kg

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:3388 lm
• Luminaire efficacy*:126 lm/W
• Colour Rendering Index min.:80
• Ballast:1 x 28003811 LC 25/200-650/38 o4a NF SR EXC3
• Correlated colour temperature*:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):3
• Rated median useful life*:L80 50000 h at 25 °C
• Luminaire input power*:26.9 W Power factor = 0.97
• Dimming:HFIX dimmable to 1%
• Maintenance category CIE 97:C - Closed Top Reflector
