DuoProof 2 / DUOPRF2 5400-840 HFIX E3D PM O M600L

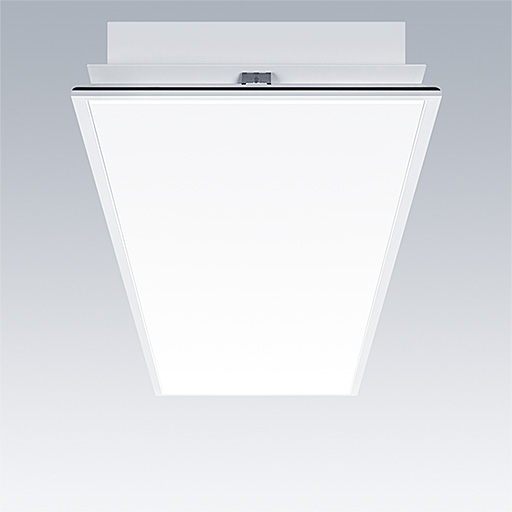

Normal purity ceiling recessed LED luminaire. Electronic, DALI dimmable control gear with 3 hour, Self/DALI Addressable test, emergency lighting circuit. Class I electrical, IK03, IP50 upper side of the luminaire, IP65 lower side of the luminaire. Body: steel sheet white, resistant to oil vapours, chemical attack, disinfectants and cleaning agents. Cover: PMMA for chemical resistance in clean rooms and industry applications. Thermoforming technology, frameless design for high demands on hygiene and easy, fast cleaning. Suitable for use in clean rooms of cleanliness class 1 to 9 as per EN ISO 14644-1. Complete with 4000K LED

For ceiling where levelling in is required please order NIV Set (22168977), for lay-in ceiling no sets required. For removal of diffuser – please order the suction cup accessory (20935455).
ISO and GMP certification of DuoProof 2 is pending.

Dimensions: 1198 x 298 x 105 mm
Luminaire input power: 36.9 W
Luminaire luminous flux: 5290 lm
Luminaire efficacy: 143 lm/W
Weight: 5.1 kg

Mode selection

Mode selectionSTD - standardEM - emergency operation

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:5290 lm
• Total emergency luminous flux:600 lm
• Luminaire efficacy*:143 lm/W
• Colour Rendering Index min.:80
• Correlated colour temperature*:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):2
• Rated median useful life*:L95 50000 h at 25 °C
• Ballast:1x HFIX
• Luminaire input power*:36.9 W Power factor = 0.98
• Dimming:DA2
• Maintenance category CIE 97:E - Dust-proof IP5X
• Total harmonic distortion (THD):10.00 %
