  • IQ Beam — IQ BEAM HT 6300-840 MPT-F HF Q600

IQ Beam / IQ BEAM HT 6300-840 MPT-F HF Q600

96636076

▼ Data Sheet

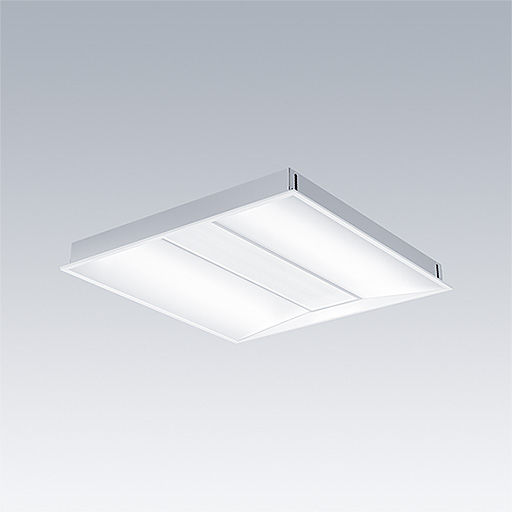

A linear optic, recessed modular LED luminaire for exposed T, plasterboard and concealed grid ceilings. Fixed output, LED driver. Class I electrical, IP20, Impact strength: IK03. Body: white painted steel. Diffuser: micro prism structure acrylic with diffusing foil. Suitable for lay-in installation, pull up installation optional. Complete with 4000K LED.

Dimensions: 597 x 597 x 60 mm
Luminaire input power: 50 W
Luminaire luminous flux: 6300 lm
Luminaire efficacy: 126 lm/W
Weight: 4.22 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:6300 lm
  • Luminaire efficacy*:126 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000713 LC 75W 100-400mA flexC lp EXC
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 50 °C
  • Luminaire input power*:50 W Power factor = 0.98
  • Dimming:FIX
  • LED
  • CE
  • Einb_NDaeMat
  • GLedReP
  • 650°
  • IK03
  • IP20
  • LLedNr
  • RG1
  • SC1
  • Ta= -20 to +50
