  • IQ Beam — IQ BEAM 3000-840 MPT-F HF Q600

IQ Beam / IQ BEAM 3000-840 MPT-F HF Q600

96634277

▼ Data Sheet

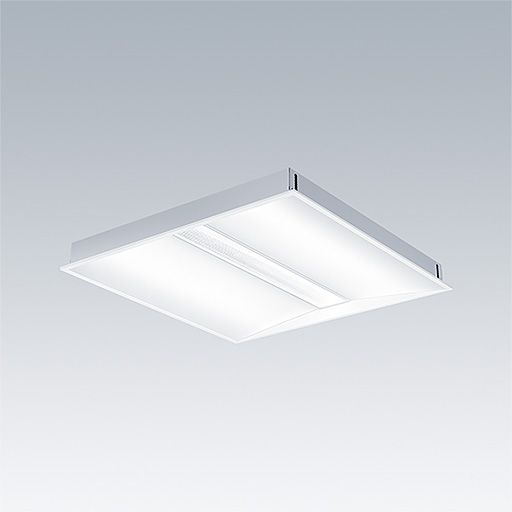

A linear optic, recessed modular LED luminaire for exposed T, plasterboard and concealed grid ceilings. Fixed output, LED driver. Class I electrical, IP20, Impact strength: IK03. Body: white painted steel. Diffuser: micro prism structure acrylic with diffusing foil. Suitable for lay-in installation, pull up installation optional. Complete with 4000K LED.

Dimensions: 597 x 597 x 60 mm
Luminaire input power: 24.7 W
Luminaire luminous flux: 3000 lm
Luminaire efficacy: 121 lm/W
Weight: 4.14 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3000 lm
  • Luminaire efficacy*:121 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000680 LC 50W 100-400mA flexC lp EXC
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Luminaire input power*:24.7 W Power factor = 0.98
  • Dimming:FIX
  • Maintenance category CIE 97:D - Enclosed IP2X
  • Total harmonic distortion (THD):23.90 %
  • LED
  • CE
  • Einb_NDaeMat
  • GLedReP
  • 650°
  • IK03
  • IP20
  • LLedNr
  • RG1
  • SC1
  • Ta=-20°C_to_+40°C
