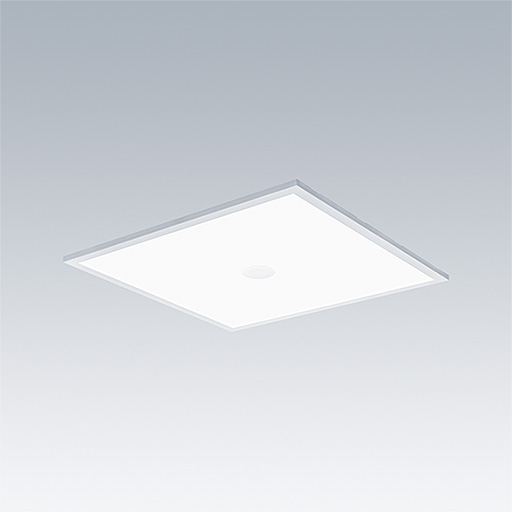

Omega Pro 2 / OP2 4400-840 CKIT+ OP BC Q600

A recessed/surface/suspended, edge-lit LED luminaire. LED driver, Wireless controlled via App with Bluetooth® 4.x - basicDIM Wireless. Class II electrical (this product is not earthed), IP40_IP20, Impact strength: IK03. Body: steel sheet, finished white (close to RAL9016). Diffuser: UV-stabilised polymethylmethacrylate opal optic for wide light distribution with central control pod hole. Electrical connection via 7 pole piano key terminals, loop-in/loop-out possible. Complete with 4000K LED, Colour Rendering Index min.: 80

Radio definition: basicDIM Wireless - Bluetooth® 4.x, Radio frequency: 2.4...2.483 GHz, Radio power: +4 dBm.


Dimensions: 597 x 597 x 55 mm
Luminaire input power: 35 W
Luminaire luminous flux: 4250 lm
Luminaire efficacy: 121 lm/W
Weight: 5.44 kg

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:4250 lm
• Luminaire efficacy*:121 lm/W
• Colour Rendering Index min.:80
• Ballast:1 x 28000654 LCA 35W 150-700mA one4all lp PRE
• Correlated colour temperature*:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):3
• Rated median useful life*:L90 50000 h at 25 °C
• Luminaire input power*:35 W Power factor = 0.97
• Standby Power*:0.2 W
• Dimming:BC dimmable to 10%
• Radio definition: basicDIM Wireless - Bluetooth® 4.x
• Radio frequency: 2.4...2.483 GHz
• Radio power: +4 dBm
• Maintenance category CIE 97:D - Enclosed IP2X
