Omega Pro 2 / OP2 3000-840 CKIT+ OP BC PIR 3X12

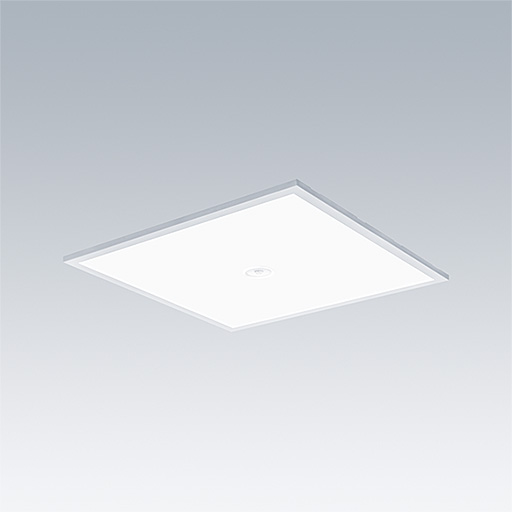

A recessed/surface/suspended, edge-lit LED luminaire. LED driver, Wireless controlled via App with Bluetooth® 4.x - basicDIM Wireless. Class II electrical (this product is not earthed), IP40_IP20, Impact strength: IK03. Body: steel sheet, finished white (close to RAL9016). Diffuser: UV-stabilised polymethylmethacrylate opal optic for wide light distribution with central control pod hole. Equipped with presence detector and daylight harvesting function for dimming control plus slaves via bluetooth. Electrical connection via 7 pole piano key terminals, loop-in/loop-out possible. Complete with 4000K LED, Colour Rendering Index min.: 80

Radio definition: basicDIM Wireless - Bluetooth® 4.x, Radio frequency: 2.4...2.483 GHz, Radio power: +4 dBm.


Dimensions: 1197 x 297 x 59 mm
Luminaire input power: 23.7 W
Luminaire luminous flux: 2850 lm
Luminaire efficacy: 120 lm/W
Weight: 5.75 kg

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:2850 lm
• Luminaire efficacy*:120 lm/W
• Colour Rendering Index min.:80
• Correlated colour temperature*:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):3
• Rated median useful life*:L90 50000 h at 25 °C
• Ballast:1x LED_DRV Tridonic LCA
• Luminaire input power*:23.7 W Power factor = 0.97
• Standby Power*:0.2 W
• Dimming:BC dimmable to 10%
• Radio definition: basicDIM Wireless - Bluetooth® 4.x
• Radio frequency: 2.4...2.483 GHz
• Radio power: +4 dBm
• Maintenance category CIE 97:D - Enclosed IP2X
