  • Omega Pro 2 — OP2 3800-840 MPT HF E3 3X12

Omega Pro 2 / OP2 3800-840 MPT HF E3 3X12

92916321

▼ Data Sheet

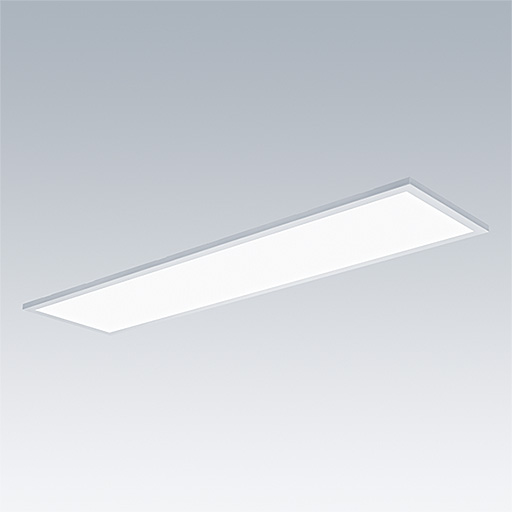

A recessed/surface/suspended, edge-lit LED luminaire. LED driver, with 3 hour, manual test, emergency lighting circuit. Class II electrical (this product is not earthed), IP40_IP20, Impact strength: IK03. Body: steel sheet, finished white (close to RAL9016). Diffuser: UV-stabilised polycarbonate microprismatic optic for maximised spacing. Electrical connection via piano key terminals, loop-in/loop-out possible. Complete with 4000K LED, Colour Rendering Index min.: 80



Dimensions: 1197 x 297 x 57 mm
Luminaire input power: 29.9 W
Luminaire luminous flux: 3800 lm
Luminaire efficacy: 127 lm/W
Weight: 5.79 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3800 lm
  • Total emergency luminous flux:300 lm
  • Luminaire efficacy*:127 lm/W
  • Colour Rendering Index min.:80
  • Ballast 1:1 x 28002473 LC 38W 500-700mA flexC lp ADV
  • Ballast 2:1 x 89800576 EM converterLED BASIC 203 MH/LiFePO4 50V
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Luminaire input power*:29.9 W Power factor = 0.95
  • Charging power:2.7 W
  • Maintenance category CIE 97:D - Enclosed IP2X
  • LED
  • CE
  • Einb_NDaeMat
  • ENEC11
  • GLedReP
  • 650°
  • IK03
  • IP40_IP20
  • LLedNr
  • RG0
  • SC2
  • Ta=0°C_to_+35°C
