Home / Products / Indoor Lighting / Spotlights / Graffiti / Graffiti, CONT spot / GRAFFITI 3600-930HE SWI CONT SP BK

Graffiti / GRAFFITI 3600-930HE SWI CONT SP BK

96108777

Data Sheet

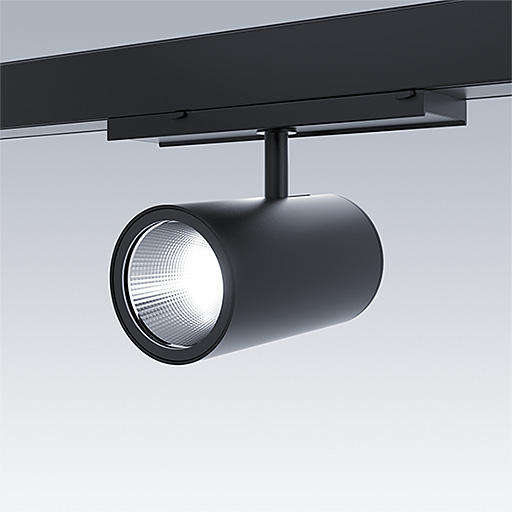

LED spotlight for CONTUS continuous-row systems with spot light distribution and stabilized color temperature. control gear. Class II electrical (this product is not earthed), IP20. Luminaire with CONTUS adapter for simple, rapid mounting of luminaire to CONTUS continuous-row systems. Body: die-cast aluminium black micro-textured paint. Reflector: PC sputtered. Spotlight rotatable through 337° and pivotable through 90°. Complete with 3000K LED, maximum efficiency

This article is single packed article and can also be ordered bulk packed.

Dimensions: Ø95 x 204 mm
Luminaire input power: 27 W
Luminaire luminous flux: 3400 lm
Luminaire efficacy: 126 lm/W
Weight: 0.85 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3400 lm
  • Luminaire efficacy*:126 lm/W
  • Colour Rendering Index min.:90
  • Ballast:1 x 06891816 DRV OS IT FIT 30W 700mA 42V F
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):2
  • Rated median useful life*:L80 50000 h at 25 °C
  • Luminaire input power*:27 W Power factor = 0.96
  • Dimming:SWI
  • Maintenance category CIE 97:D - Enclosed IP2X
  • LED
  • CE
  • GLedNr
  • IP20
  • LLedNr
  • SC2
  • UKCA
