Tonic / TONIC S 2800-940 3GU WFL WH

96638020

Data Sheet

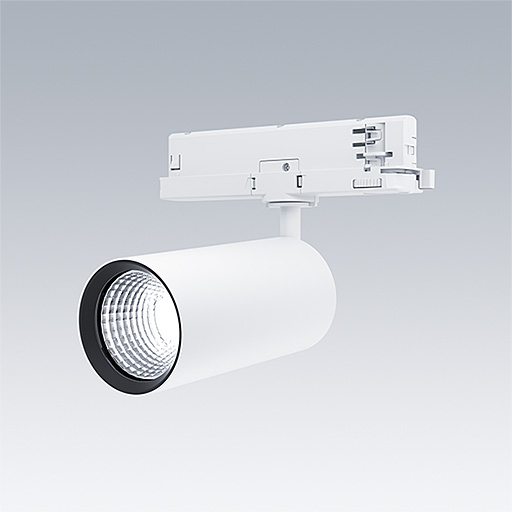

LED spotlight for 3 phase track installations with wide flood light distribution and stabilized color temperature. Electronic, fixed output control gear. Class II electrical (this product is not earthed), IP20. Body: die-cast aluminium white micro-textured paint. Reflector: PC sputtered. Spotlight rotatable through 360° and pivotable through 90°. Complete with 4000K LED



Dimensions: Ø68 x 140 mm
Luminaire input power: 24.5 W
Luminaire luminous flux: 2902 lm
Luminaire efficacy: 118 lm/W
Weight: 0.52 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2902 lm
  • Luminaire efficacy*:118 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Ballast:1x HF_
  • Luminaire input power*:24.5 W Power factor = 0.9
  • Dimming:Fixed output
  • Maintenance category CIE 97:D - Enclosed IP2X
  • LED
  • CCC
  • CE
  • GLedReP
  • IP20
  • LLedReP
  • SC2
  • UKCA
