1. Carat Large, Narrow road optic

Contus, electrical feed

CONTUS TE L500 WH
Article number: 96635833
EAN number: 5063016183865
Electic feeds
Colour
White

Technical Data

Electrical Properties
Emergency included
false
Light Distribution
Light Distribution
STD - standard
Physical Characteristics
Dimensions
533x60x58 mm
Length
533 mm
Width
60 mm
Height
58 mm
Weight
1.4 kg
Colour
White
Drawings
Dimensional sketch

Downloads

CONTUS TE L500 WH

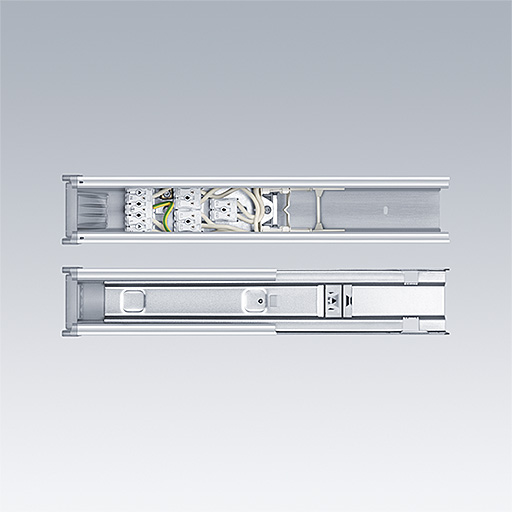

Power-feed kit L500 in white made of profiled sheet steel for electrical connection of the continuous row. Kit consists of two units, one featuring the terminal blocks for the electrical connection, and the other is a mechanical part. Together they achieve the 500mm length, that allows the line to be fully equipped and covered by CONTUS luminaires. Plug-in connecting terminals for 5 mains power lines, 2 x 2 emergency lighting conductors and 2 control lines. Includes end caps and protective covers to prevent accidental contact with electrical conductors. Dimensions: 533 x 60 x 58 mm Weight: 1.4 kg
