1. Novaline Style S, dimmable

Contus, electrical feed

CONTUS TM L750 WH
Article number: 96635835
EAN number: 5063016183889
Electic feeds
Colour
White

Technical Data

Electrical Properties
Emergency included
false
Light Distribution
Light Distribution
STD - standard
Physical Characteristics
Dimensions
750x60x54 mm
Length
750 mm
Width
60 mm
Height
54 mm
Weight
1.45 kg
Colour
White
Drawings
Dimensional sketch

Downloads

CONTUS TM L750 WH

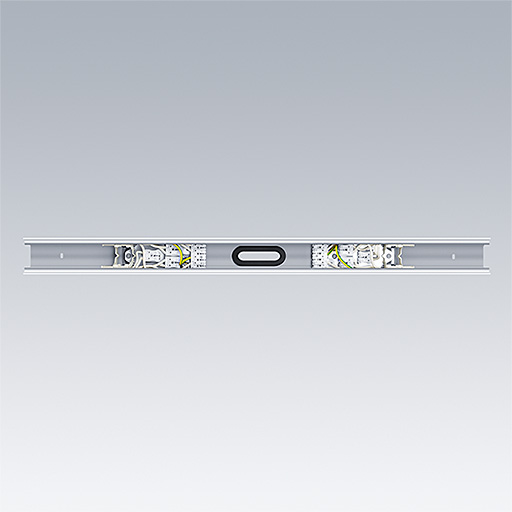

Electrical centre feed L750 in white made of roll-formed sheet steel for central electrical connection or central load distribution of the continuous row. 2 sets with plug-in connecting terminals for 5 mains power lines, 2 x 2 emergency lighting conductors and 2 control lines. Touch protection for current conducting section. The Contus centre feed can be covered with the ends of two Contus luminaires that have a length of at least 1000 mm or with cover strips. The center feed unit is delivered together with two trunking endcaps. Dimensions: 750 x 60 x 54 mm Weight: 1.45 kg
