R2L2 / R2L2 M 60L70 740 RC CL1 GY

96266453 / RLM6070RC

Data Sheet

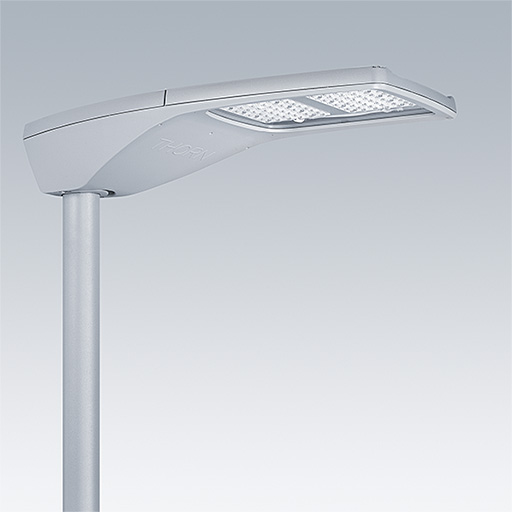

A medium size LED road lighting lantern with 60 LEDs driven at 700mA with Road & Comfort optic. LED driver Programmable. Class I electrical, IP66, IK08. Housing: die-cast aluminium, powder coated textured light grey. Enclosure: tempered flat glass. Screws: stainless steel, Ecolubric® treated. Post top (Ø60/76mm, tilted 0°/5°/10°) or lateral (Ø34/42/49/60mm, tilted 0°/-5°/-10°/-15°) mounting. Complete with 4000K LED.

Dimensions: 880 x 370 x 155 mm
Luminaire input power: 126 W
Luminaire luminous flux: 18959 lm
Luminaire efficacy: 150 lm/W
Weight: 13.26 kg
Scx: 0.06 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:18959 lm
  • Luminaire efficacy*:150 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 28003163 LCO 135/200-1050/ 220 o4a NF C EXC3
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L90 100000 h at 25 °C
  • Luminaire input power*:126 W Power factor = 0.95
  • Dimming:PROG
  • LED
  • CE
  • GLedReP
  • IK08
  • IP66
  • Coastal_C5
  • LLedReP
  • SC1
  • Ta = -25 to 35
