Contrast / CONT3 12L70-RGBW NB RDMX SP ANT

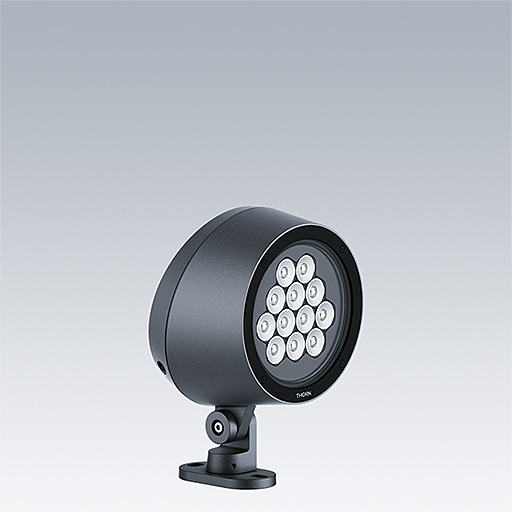

A medium architectural Bracket mounted LED floodlight with 12 LEDs driven at 700mA and a narrow beam distribution. LED driver, DMX controllable control gear. Class II electrical (this product is not earthed), IP66, IK08. Body: die-cast aluminium (EN AC-44300), powder coated, textured anthracite (close to RAL7043). Compatible with coastal environments. Glass: tempered, 5mm thick. Gasket: EPDM. Screws: geomet. Equipped with 10kV / 10kA surge protection device. Complete with RGBW LEDs (White = 830)

,

Dimensions: Ø239 x 156 mm
Luminaire input power: 32 W
Luminaire luminous flux: 1641 lm
Luminaire efficacy: 51 lm/W
Weight: 5.09 kg

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:1641 lm
• Luminaire efficacy*:51 lm/W
• Ballast:1 x 96379360 DRV EL PDRV 50W 1.4A 55V D #50S-M4Z0X
• Chromaticity tolerance (initial MacAdam):3
• Rated median useful life*:L80 50000 h at 25 °C
• Luminaire input power*:32 W Power factor = 0.97
• Dimming:DMX-card
