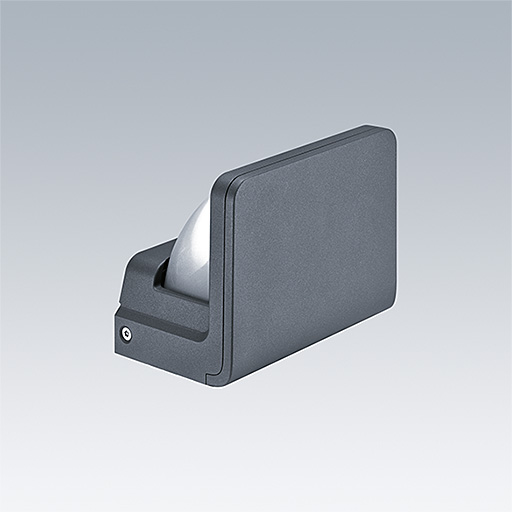

Raze Architectural
RAZE Architectural is the perfect tool for achieving a dramatic grazing effect on façades
- Raze's integrated Flat beam® patented optic technology can reveal the texture and character of surfaces from a single installation point
- A compact luminaire in 2 sizes with an extensive beam and high utilisation factor for a minimum loss of flux as most of the light emitted is projected on the surface
- Whether vertically or horizontally used, upwards or downwards, Raze can be placed very close to the wall still reaching high uniformity
- Raze Architectural is equipped with DALI. Internal louvre available in large size to reduce lateral glare
Materials and Finish
Housing: die-cast aluminium (EN AC-44300) best resistance against corrosion. Compatible with seaside installation.
Standard corrosion class C5 according to ISO 9223: 2012.
Powder coated in texturized anthracite grey / light grey / black. Other RAL on request
Bowl: UV stabilised PC, Large: partially frosted, Small: fully frosted
Fasteners: stainless steel
Surge protection: 6kV
Installation and Mounting
Small and large Raze Architectural can be mounted flush on the wall (MWA) or on the ground or ceiling with a tilting bracket (MSF). Raze Architectural small with remote Dali driver whether IP20(HFX/R) or in gear box IP65 (HFX/RB). Raze Architectural small can be ordered with no driver (NG) as one driver can drive up to 3 luminaires. Raze Architectural Large with integrated Dali driver.
Specification
To specify state:
The Raze family incorporates Thorn’s innovative Flatbeam® technology, which transforms the way we light façades and building surrounds. A high illumination factor means light goes to the surface that needs to be lit, and nowhere else. The flat and wide light distribution makes it possible to reduce the number of products installed and still maintain continuous illumination along a wall. Raze lets you achieve the perfect effect, while saving energy and respecting the environment.
As Thorn Raze Architectural, part of the Raze family
▼ Raze Architectural Small
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| RAA S 1L35-827 HFX/RB 6K MSF ANT | 6 | 350 | LED | 1.28 | 96631797 | ||||
| RAA S 1L35-830 HFX/R 6K MSF ANT | 6 | 350 | LED | 0.84 | 96632096 | ||||
| RAA S 1L35-830 HFX/R 6K MWA ANT | 6 | 350 | LED | 0.79 | 96632095 | ||||
| RAA S 1L35-830 HFX/RB 6K MSF ANT | 6 | 350 | LED | 1.28 | 96631791 | ||||
| RAA S 1L35-830 HFX/RB 6K MWA ANT | 6 | 350 | LED | 1.23 | 96631790 | ||||
| RAA S 1L35-830 NG 6K MSF ANT | 6 | 350 | LED | 0.61 | 96631720 | ||||
| RAA S 1L35-830 NG 6K MWA ANT | 6 | 350 | LED | 0.56 | 96632094 |
▼ Raze Architectural Large
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| RAA L 1L50-827 HFX 6K MSF ANT | 21 | 1371 | LED | 2.85 | 96632097 | ||||
| RAA L 1L50-830 HFX 6K MSF ANT | 21 | 1688 | LED | 2.85 | 96631721 | ||||
| RAA L 1L50-830 HFX 6K MWA ANT | 21 | 1688 | LED | 2.77 | 96632100 | ||||
| RAA L 1L50-830 LV HFX 6K MSF ANT | 21 | 1433 | LED | 2.85 | 96632098 | ||||
| RAA L 1L50-830 LV HFX 6K MWA ANT | 21 | 1433 | LED | 2.77 | 96631792 |
