  • Raze Architectural — RAA S 1L35-830 HFX/R 6K MSF ANT

Raze Architectural / RAA S 1L35-830 HFX/R 6K MSF ANT

96632096

▼ Data Sheet

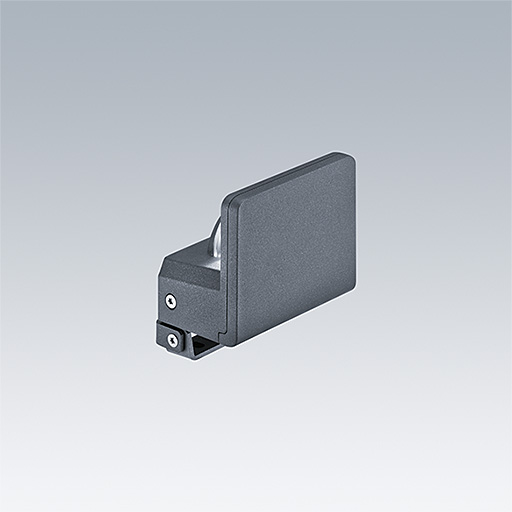

A compact, Surface mounted, LED wall grazer, incorporating Thorn's Flat beam® technology. 1 LED driven at 350mA. Remote DALI dimmable LED driver included. Class III electrical, IP66, IK08. Housing: die-cast aluminium (EN44300, compatible with seaside installation), powder coated, textured anthracite (close to RAL7043). Bowl: UV stablised polycarbonate, frosted. Fasteners: stainless steel. Complete with 3000K LED.

S version driver capable of supplying up to three luminaires.
MSF variant with adjustable tilt up to ±15°.
MWA variant flush mounting.
6kV surge protection as standard. Pre-wired with 2m cable.

Dimensions: 109 x 110 x 72 mm
Luminaire input power: 6 W
Luminaire luminous flux: 350 lm
Luminaire efficacy: 58 lm/W
Weight: 0.84 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:350 lm
  • Luminaire efficacy*:58 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28004655 LCO 24/200-1050/39 o4a NF C EXC3
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L70 100000 h at 25 °C
  • Luminaire input power*:6 W
  • Dimming:DaliDim
  • LED
  • CE
  • GLedReP
  • IK08
  • IP66
  • Coastal_C5
  • LLedReP
  • SC3

▼ Photometry

Photometric configuration

▼ CalcExpress
