  • Candle Bollard — CN B 8L35-830 RSC CL1 MPL ANT

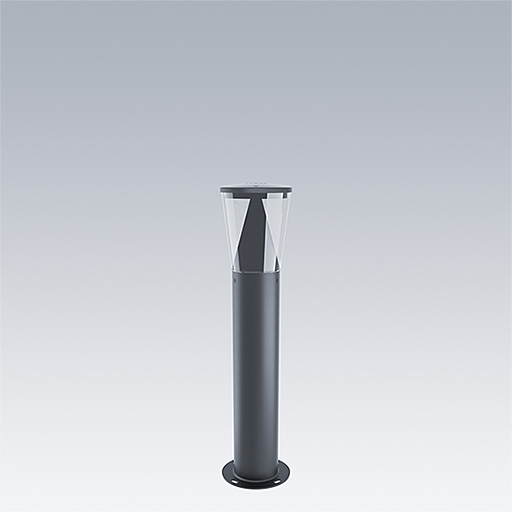

Candle Bollard / CN B 8L35-830 RSC CL1 MPL ANT

96679076

▼ Data Sheet

Environmentally respectful bollard with limited upward lighting emission with 8 LEDs driven at 350mA with Radial symmetrical comfort light distribution. Fixed output LED driver. Class I electrical, IP66, IK10. Base: die-cast aluminium (EN AC-44300). Finish: powder coated aluminium, texturized anthracite (close to RAL7043). Diffuser: UV stabilised clear polycarbonate. Flange mounted. Complete with 3000K LED.

Dimensions: Ø234 x 1017 mm
Luminaire input power: 10.1 W
Weight: 7.98 kg
Scx: 0.06 m²
Luminaire efficacy: 93 lm/W

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:937 lm
  • Luminaire efficacy*:93 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 96276908 DRV OS OT 20W 1.05A 38V D #4DIMLT2 G2 CE
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated median useful life*:L90 100000 h at 25 °C
  • Luminaire input power*:10.1 W Power factor = 0.92
  • Dimming:FIX
  • LED
  • CE
  • GLedReP
  • IK10
  • IP66
  • Coastal_C5
  • LLedReP
  • SC1
  • Ta=25

▼ Photometry

Photometric configuration
