  • Raze Bollard — RAW 1L35-730 WP HFX CL1 6K ANT

Raze Bollard / RAW 1L35-730 WP HFX CL1 6K ANT

96631801

▼ Data Sheet

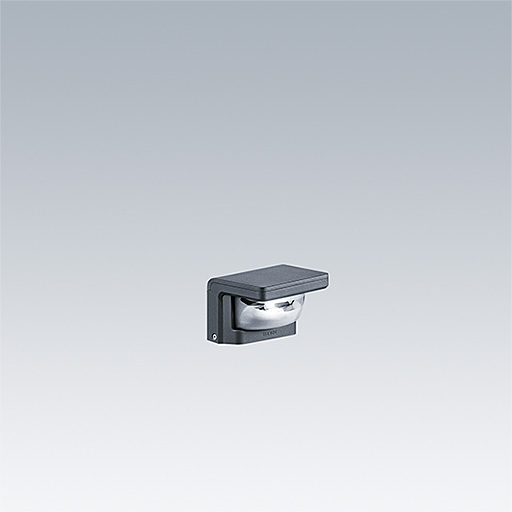

A wall mounted LED luminaire, incorporating Thorn's Flat beam® technology. 1 LED driven at 350mA. Integral DALI dimmable LED driver included. Class I electrical, IP66, IK10. Housing: die-cast aluminium (EN44300, compatible with seaside installation), powder coated, textured anthracite (close to RAL7043). Bowl: UV stabilised polycarbonate, semi-frosted. Fasteners: stainless steel. Complete with 3000K LED.

6kV surge protection as standard.

Dimensions: 176 x 220 x 145 mm
Luminaire input power: 15 W
Luminaire luminous flux: 1142 lm
Luminaire efficacy: 76 lm/W
Weight: 2.77 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1142 lm
  • Luminaire efficacy*:76 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 28003160 LCO 40/200-1050/64 o4a NF C EXC3
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L70 100000 h at 25 °C
  • Luminaire input power*:15 W
  • Dimming:DaliDim
  • LED
  • CE
  • GLedReP
  • IK10
  • IP66
  • Coastal_C5
  • LLedReP
  • SC1
