Thor Bollard

  • Thor Bollard
  • Thor Bollard
  • Thor Bollard
  • Thor Bollard

Elegant vandal resistant bollard with high performance optic offering a comfortable light and energy saving solution

  • Best in class LED optic provides a comfortable, low glare direct and indirect light with asymmetric or symmetric distribution, sympathetic to users with a lower viewing angle
  • Durable and vandal resistant (IK10 40 joules for the slim version)
  • Bi power dimming and presence detection options reduce energy consumption

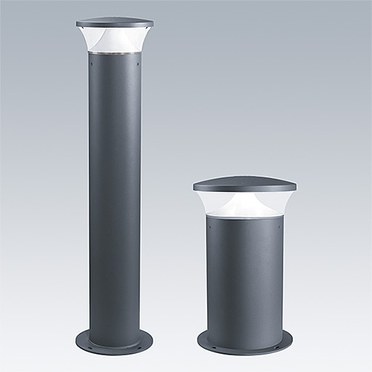

  • Available in two sizes – slim and wide – with the wide version also suitable for use as street furniture

Materials and Finish

Column and base: aluminium
Canopy: die-cast aluminum (EN AC 44300, standard corrosion class C5).
Diffuser: clear anti UV Polycarbonate
Reflector: white Polycarbonate
Gear Box: Polypropylene
Canopy and Column colour: powder coated dark grey (close to 7043)

Installation and Mounting

Slim version: suitable for Root and Flange mounting: 4 x anchor bolts M14 (96009822 to be ordered separately), spacing: 150mm.
Wide version: suitable for Flange mounting: 4 x anchor bolts M14 (to be ordered separately), spacing: 200mm.
Ready to install: prewired fittings to be connected with a connection box (to be ordered separately) through the anti vandal access door (via Torx hollow T30)
For RGB and Bi power versions choose the colour of the decorative led band or deactivate the Bi Power function at installation through the access door.
Gear box (including the driver) and head (including the LEDs) are easily replaceable as spares.

Specification

To specify state: Elegant and vandal resistant bollard offering asymmetric and symmetric distributions, combining both direct and indirect comfortable light, with decorative colour and dimming/presence detection.
As Thorn Thor Bollard.

New Product
LumExpress Product
eControl Product

▼ Thor Bollard Slim 250mA, Lit band, flange mounted

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
TR B S 10L25 730 RGB ASY CL1 MPL91061ADS3K9FARGBLED7.6696264232
TR B S 10L25 730 RGB R/S CL1 MPL91114ADS3K9FRSRGBLED7.6696264231
TR B S 10L25 740 RGB ASY CL1 MPL91124ADS4K9FARGBLED7.6696264230
TR B S 10L25 740 RGB R/S CL1 MPL91180ADS4K9FRSRGBLED7.6696264229

▼ Thor Bollard Slim 250mA, No lit band, flange mounted

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
TR B S 10L25 730 ASY CL1 MPL91061ADS3K9FALED7.6696264228
TR B S 10L25 730 R/S CL1 MPL91114ADS3K9FRSLED7.6696264227
TR B S 10L25 740 ASY CL1 MPL91124ADS4K9FALED7.6696264226
TR B S 10L25 740 R/S CL1 MPL91180ADS4K9FRSLED7.6696264225

▼ Thor Bollard Slim 250mA, Lit band, root mounted

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
TR B S 10L25 730 RGB ASY CL1 MGR91061ADS3K9RARGBLED9.3096264248
TR B S 10L25 730 RGB R/S CL1 MGR91114ADS3K9RRSRGBLED9.3096264247
TR B S 10L25 740 RGB ASY CL1 MGR91124ADS4K9RARGBLED9.3096264246
TR B S 10L25 740 RGB R/S CL1 MGR91180ADS4K9RRSRGBLED9.3096264245

▼ Thor Bollard Slim 250mA, No lit band, root mounted

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
TR B S 10L25 730 ASY CL1 MGR91061ADS3K9RALED9.3096264244
TR B S 10L25 730 R/S CL1 MGR91114ADS3K9RRSLED9.3096264243
TR B S 10L25 740 ASY CL1 MGR91124ADS4K9RALED9.3096264242
TR B S 10L25 740 R/S CL1 MGR91180ADS4K9RRSLED9.3096264241

▼ Thor Bollard Slim 350mA, Lit band, flange mounted

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR B S 10L35 BPSW 730 RGB ASY CL1 MPL121440LED7.7096273277
TR B S 10L35 BPSW 730 RGB R/S CL1 MPL121512LED7.7096273276
TR B S 10L35 BPSW 740 RGB ASY CL1 MPL121525LED7.7096273275
TR B S 10L35 BPSW 740 RGB R/S CL1 MPL121601LED7.7096273274

▼ Thor Bollard Slim 350mA, No lit band, flange mounted

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR B S 10L35 BPSW 730 ASY CL1 MPL121440LED7.7096273273
TR B S 10L35 BPSW 730 R/S CL1 MPL121512LED7.7096273272
TR B S 10L35 BPSW 740 ASY CL1 MPL121525LED7.7096273302
TR B S 10L35 BPSW 740 R/S CL1 MPL121601LED7.7096273301

▼ Thor Bollard Slim 350mA, Lit band, root mounted

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR B S 10L35 BPSW 730 RGB ASY CL1 MGR121440LED9.3096273293
TR B S 10L35 BPSW 730 RGB R/S CL1 MGR121512LED9.3096273292
TR B S 10L35 BPSW 740 RGB ASY CL1 MGR121525LED9.3096273291
TR B S 10L35 BPSW 740 RGB R/S CL1 MGR121601LED9.3096273290

▼ Thor Bollard Slim 350mA, No lit band, root mounted

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR B S 10L35 BPSW 730 ASY CL1 MGR121440LED9.3096273289
TR B S 10L35 BPSW 730 R/S CL1 MGR121512LED9.3096273288
TR B S 10L35 BPSW 740 ASY CL1 MGR121525LED9.3096273287
TR B S 10L35 BPSW 740 R/S CL1 MGR121601LED9.3096273286

▼ Thor Bollard Slim, Presence detection master, flange mounted

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
TR B S 10L25 MAS 730 RGB ASY CL1 MPL91061ADS3K9FPMARGBLED7.9096265402
TR B S 10L25 MAS 730 RGB R/S CL1 MPL91114ADS3K9FPMRSRGBLED7.9096265401
TR B S 10L25 MAS 740 RGB ASY CL1 MPL91124ADS4K9FPMARGBLED7.9096265400
TR B S 10L25 MAS 740 RGB R/S CL1 MPL91180ADS4K9FPMRSRGBLED7.9096265399
TR B S 10L35 MAS 730 RGB ASY CL1 MPL121440LED7.7096273309
TR B S 10L35 MAS 730 RGB R/S CL1 MPL121512LED7.7096273308
TR B S 10L35 MAS 740 RGB ASY CL1 MPL121525LED7.7096273307
TR B S 10L35 MAS 740 RGB R/S CL1 MPL121601LED7.7096273306

▼ Thor Bollard Slim, Presence detection master, root mounted

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
TR B S 10L25 MAS 730 RGB ASY CL1 MGR91061ADS3K9RPMARGBLED9.5096265410
TR B S 10L25 MAS 730 RGB R/S CL1 MGR91114ADS3K9RPMRSRGBLED9.5096265409
TR B S 10L25 MAS 740 RGB ASY CL1 MGR91124ADS4K9RPMARGBLED9.5096265408
TR B S 10L25 MAS 740 RGB R/S CL1 MGR91180ADS4K9RPMRSRGBLED9.5096265407
TR B S 10L35 MAS 730 RGB ASY CL1 MGR121440LED9.3096273315
TR B S 10L35 MAS 730 RGB R/S CL1 MGR121512LED9.3096273314
TR B S 10L35 MAS 740 RGB ASY CL1 MGR121525LED9.3096273313
TR B S 10L35 MAS 740 RGB R/S CL1 MGR121601LED9.3096273312

▼ Thor Bollard Slim, Presence detection slave, flange mounted

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
TR B S 10L25 SLA 730 RGB ASY CL1 MPL91061ADS3K9FPSARGBLED7.7096265418
TR B S 10L25 SLA 730 RGB R/S CL1 MPL91114ADS3K9FPSRSRGBLED7.7096265417
TR B S 10L25 SLA 740 RGB ASY CL1 MPL91124ADS4K9FPSARGBLED7.7096265416
TR B S 10L25 SLA 740 RGB R/S CL1 MPL91180ADS4K9FPSRSRGBLED7.7096265415
TR B S 10L35 SLA 730 RGB ASY CL1 MPL121440LED7.7096273327
TR B S 10L35 SLA 730 RGB R/S CL1 MPL121512LED7.7096273326
TR B S 10L35 SLA 740 RGB ASY CL1 MPL121525LED7.7096273325
TR B S 10L35 SLA 740 RGB R/S CL1 MPL121601LED7.7096273324

▼ Thor Bollard Slim, Presence detection slave, root mounted

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
TR B S 10L25 SLA 730 RGB ASY CL1 MGR91061ADS3K9RPSARGBLED9.3096265426
TR B S 10L25 SLA 730 RGB R/S CL1 MGR91114ADS3K9RPSRSRGBLED9.3096265425
TR B S 10L25 SLA 740 RGB ASY CL1 MGR91124ADS4K9RPSARGBLED9.3096265424
TR B S 10L25 SLA 740 RGB R/S CL1 MGR91180ADS4K9RPSRSRGBLED9.3096265423
TR B S 10L35 SLA 730 RGB ASY CL1 MGR121440LED9.3096273332
TR B S 10L35 SLA 730 RGB R/S CL1 MGR121512LED9.3096273331
TR B S 10L35 SLA 740 RGB ASY CL1 MGR121525LED9.3096273330
TR B S 10L35 SLA 740 RGB R/S CL1 MGRR121601LED9.3096273329

▼ Thor Bollard Wide, Lit band, flange mounted

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
TR B W 10L25 730 RGB ASY CL1 MPL9796ADW3K9FARGBLED9.0096264264
TR B W 10L25 730 RGB R/S CL1 MPL9932ADW3K9FRSRGBLED9.0096264263
TR B W 10L25 740 RGB ASY CL1 MPL9843ADW4K9FARGBLED9.0096264262
TR B W 10L25 740 RGB R/S CL1 MPL9987ADW4K9FRSRGBLED9.0096264261

▼ Thor Bollard Wide, No lit band, flange mounted

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
TR B W 10L25 730 ASY CL1 MPL9796ADW3K9FALED9.0096264260
TR B W 10L25 730 R/S CL1 MPL9932ADW3K9FRSLED9.0096264259
TR B W 10L25 740 ASY CL1 MPL9843ADW4K9FALED9.0096264258
TR B W 10L25 740 R/S CL1 MPL9987ADW4K9FRSLED9.0096264257

▼ Connection box, Slim version

Description   Wt (kg)SAP Code
TEMPO16 CL2 4X16 1C/C0.4696012372

▼ Connection box, Wide version

Description   Catalogue No.Wt (kg)SAP Code
CONNECT CABLE BOX 3/4x2,5² IP67EFCB3X40.4096257908

▼ MGR base adaptors

Description   Wt (kg)SAP Code
MGR BASE BOL RAZE/DCO/THOR C5.9096637251
MGR SPIKE BOL RAZE/DCO/THOR C10.0096637250
