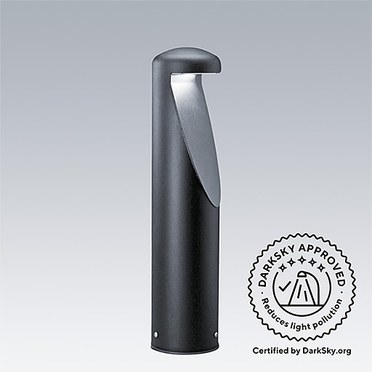

Urba Bollard

Stylish yet robust bollard enhancing urban areas

IDA Dark Sky Approved
*IDA fixture seal of approval relates to <= 3000 K only and clear enclosures. Luminaires must be mounted as photometered.
Contemporary design which is easy to integrate into urban environments
Robust, solid shape provides vandal resistant solution
A light distribution with an optimised ULOR of 0 and asymmetric optic which reduces obtrusive light and glare
LEDs offer low energy consumption, long lifetime and reduced maintenance

Materials and Finish

Body and bezel: low carbon steel SS1142 : SS-EN 10130 material DC01. Cataphoresis treatment.
Diffuser: clear 5mm polycarbonate plate
Body and bezel colours: black (RAL 9005)

Installation and Mounting

Flange mounted. 500m root to be fixed into concrete base. 800mm root to be fixed into the ground. Access door for connection box (not provided).

Specification

To specify state:
Decorative steel bollard with clear diffuser and asymmetrical light distribution.
As Thorn Urba.

▼ Urba Body

Description	Luminaire power (W)	Luminaire output (lm)				Type		Wt (kg)	SAP Code
URBA BOLLARD 4L105 730 CL1 ecoCALC DIALux RELUX	15	1009				LED		12.10	96275589
URBA BOLLARD 4L105 740 CL1 ecoCALC DIALux RELUX	15	1107				LED		12.00	96275591

▼ Urba Base

Description	Wt (kg)	SAP Code
URBA BOLLARD BASE MGR 500 ecoCALC	6.35	96275593
URBA BOLLARD BASE MGR 800 ecoCALC	9.50	96275594
URBA BOLLARD BASE MPL ecoCALC	2.40	96275592
